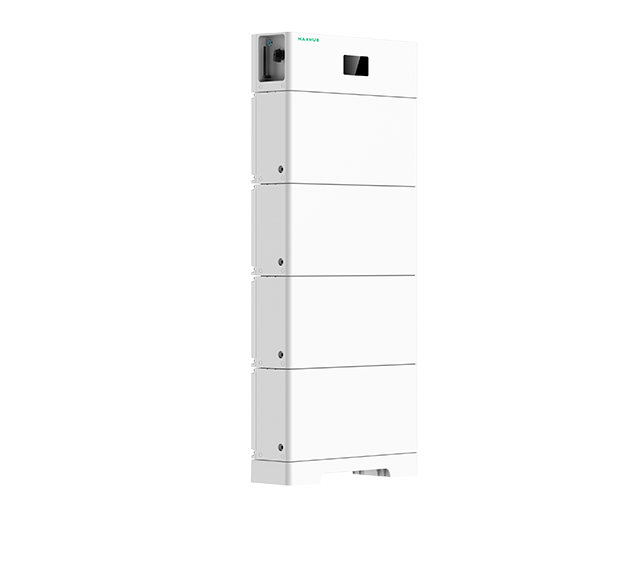

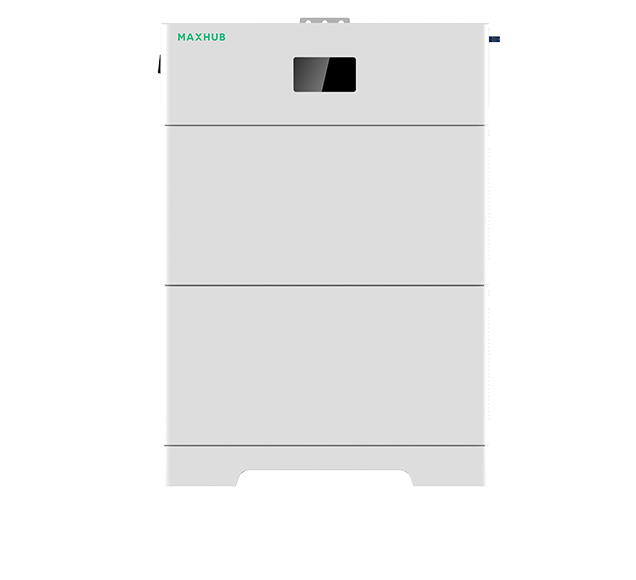

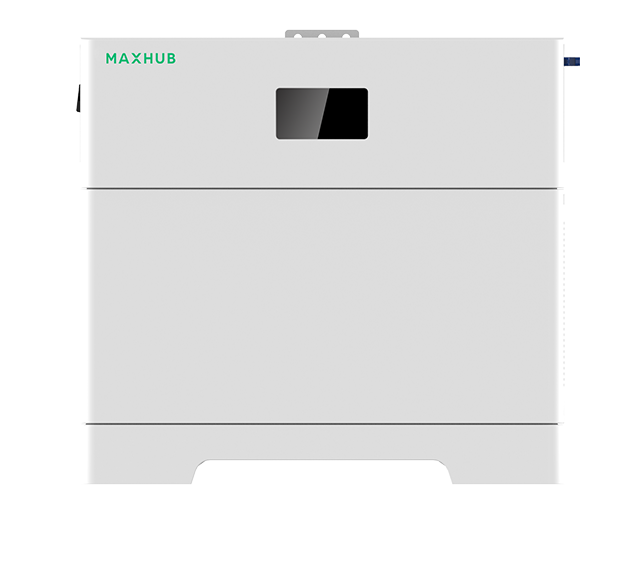

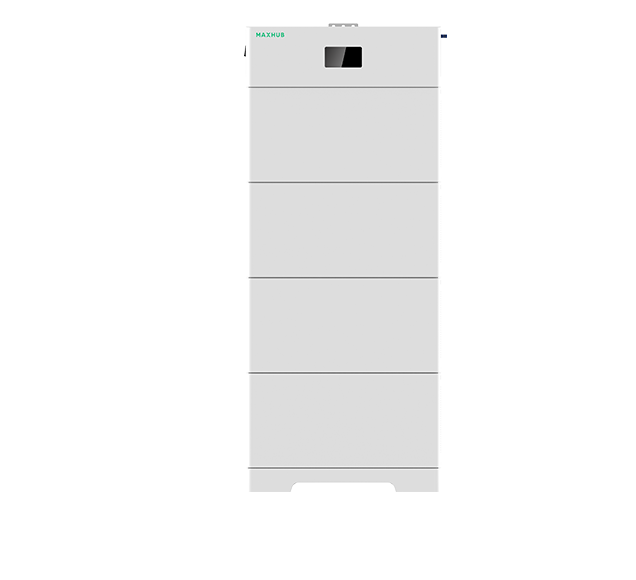

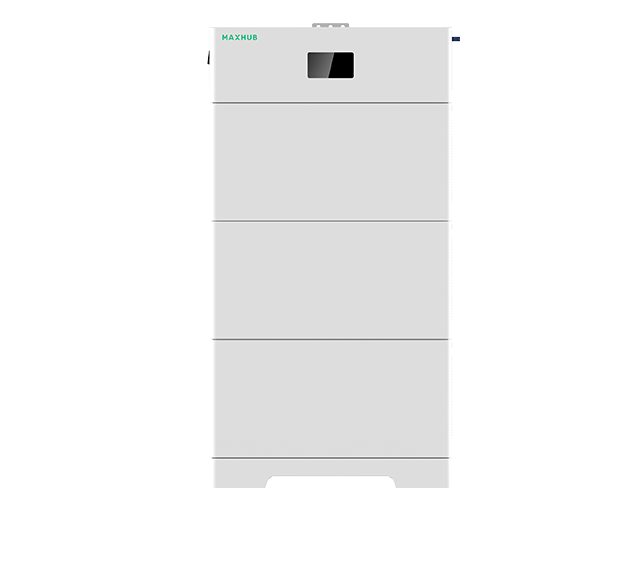

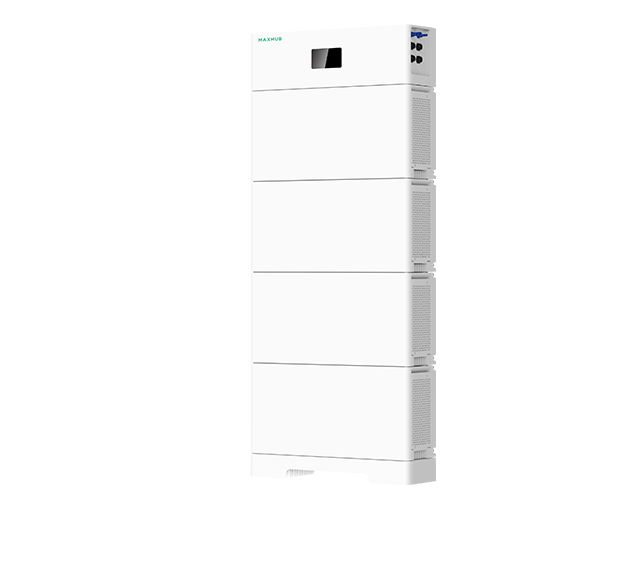

SBM5~20KH

5∼20kWh
Modular HV LFP Battery with DC-DC
Modular and stacked
Comprehensive protection design
DC-DC
  • SBM5~20KH
  • SBM5~20KH
  • SBM5~20KH
  • SBM5~20KH
  • SBM5~20KH
  • SBM5~20KH
Product Features

High voltage(~400V)enabled by built-inDC-DC

Flexible capacity config-uration(5-60kwh),mixed use of old and new

Compatible with market-leading hybrid inverter

Optimized for both grid-tied and off grid application

Specifications
MODEL
SBM5KH
SBM10KH
SBM15KH
SBM20KH
Nominal Energy
5kWh
10kWh
15kWh
20kWh
Usable Energy (100%DOD)
5kWh
10kWh
15kWh
20kWh
Rated Voltage
400V
Charge/Discharge Cut Off Voltage
350V~450V
Rated Charge/Discharge Power
2.5kW
5kW
7.5kWh
10kWh
Communication Interface
CAN 2.0/RS485/WiFi/LAN
DC Disconnect
Circuit breaker, 50A, 1000V rating
Scalability
Max. 3 in parallel, Max. 60 kWh
Operating Temperature
- 10℃to 50℃
Dimensions (W*H*D, mm )
633*(597/912/1227/1542)*189
Weight
67kg/119kg/171kg/223kg
Enclosure Protection Rating
IP65
