1200W
Single Phase Off-grid Solar Inverter
Compact and cost-effective home green energy solution integrated with solar and energy storage
Simple and exquisite appearance, safe and reliable inside
Specification Download Product Inquiry

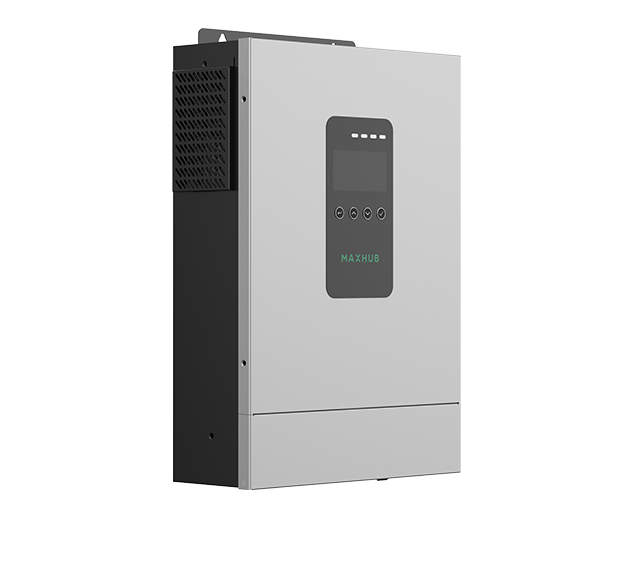

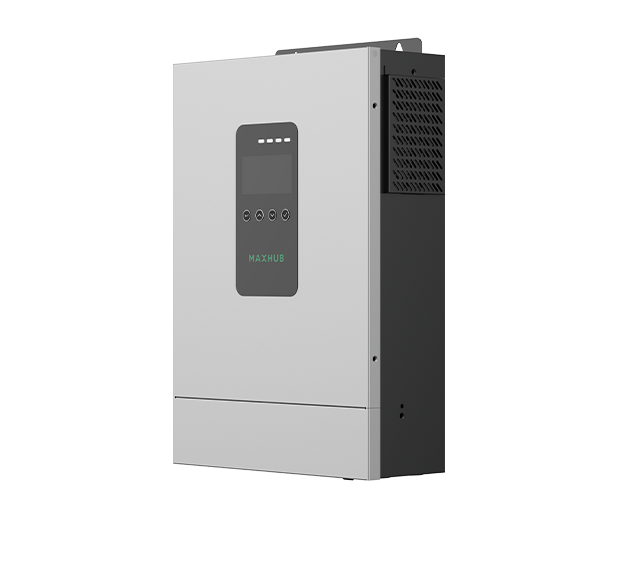

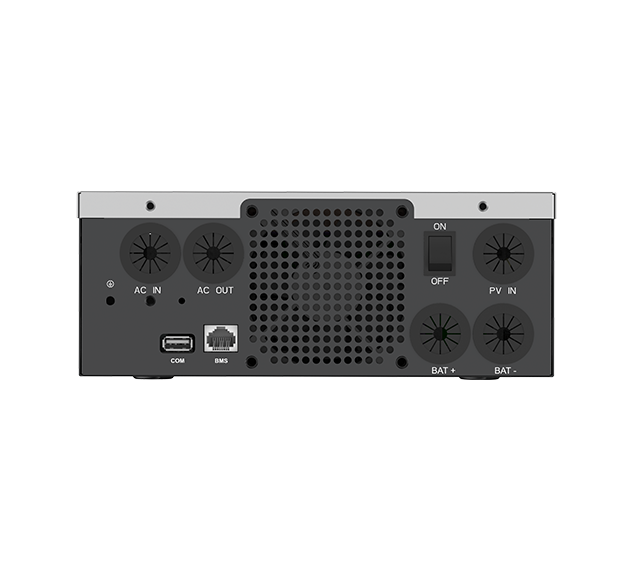

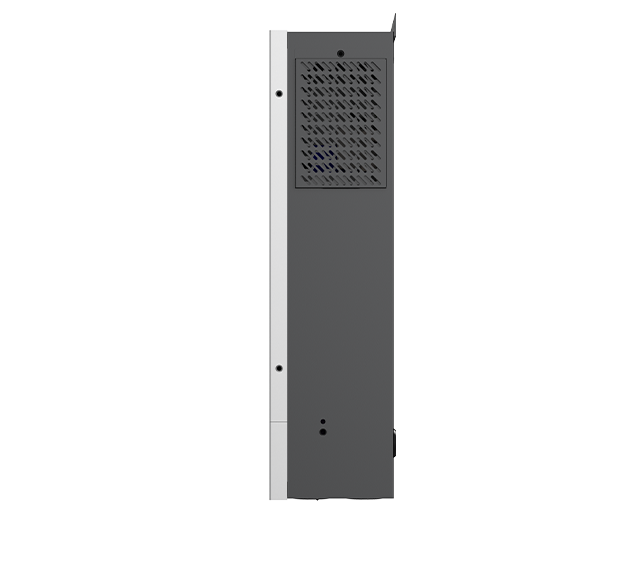

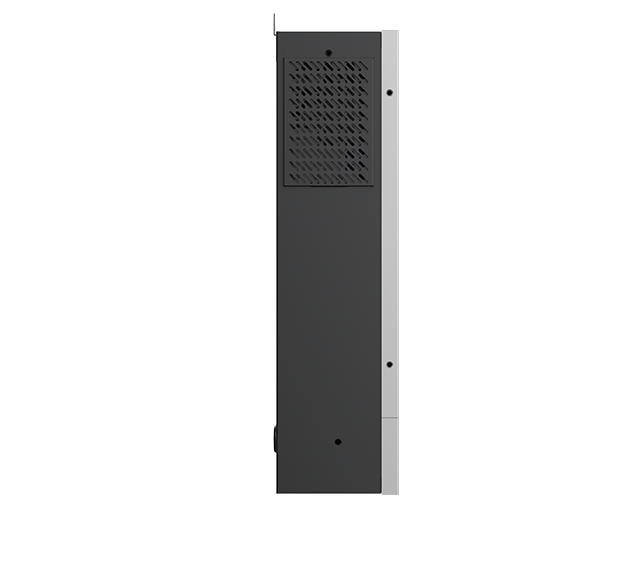

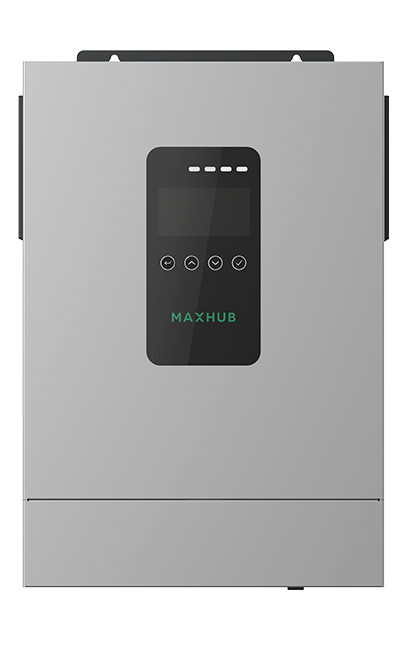

  • PV1000-12
  • PV1000-12
  • PV1000-12
  • PV1000-12
  • PV1000-12
  • PV1000-12

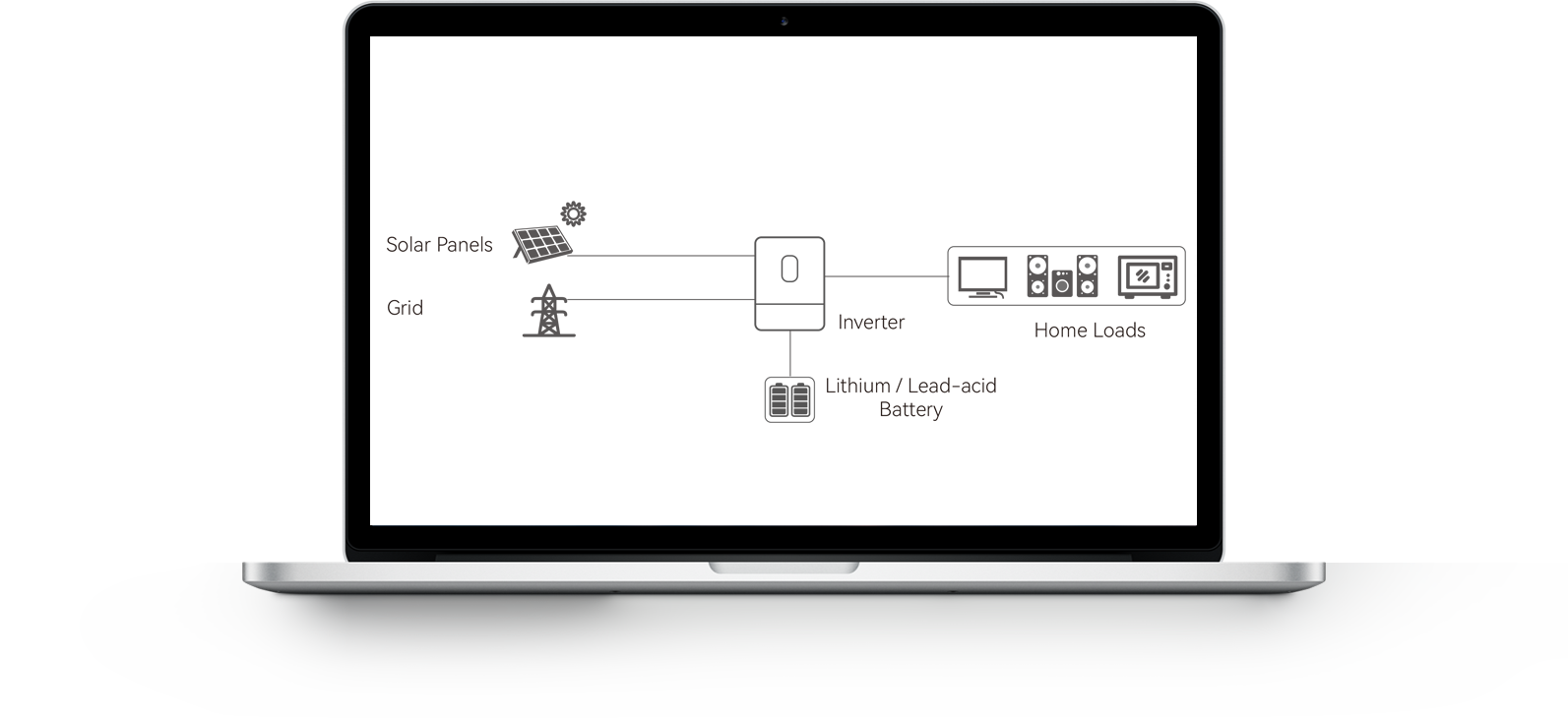

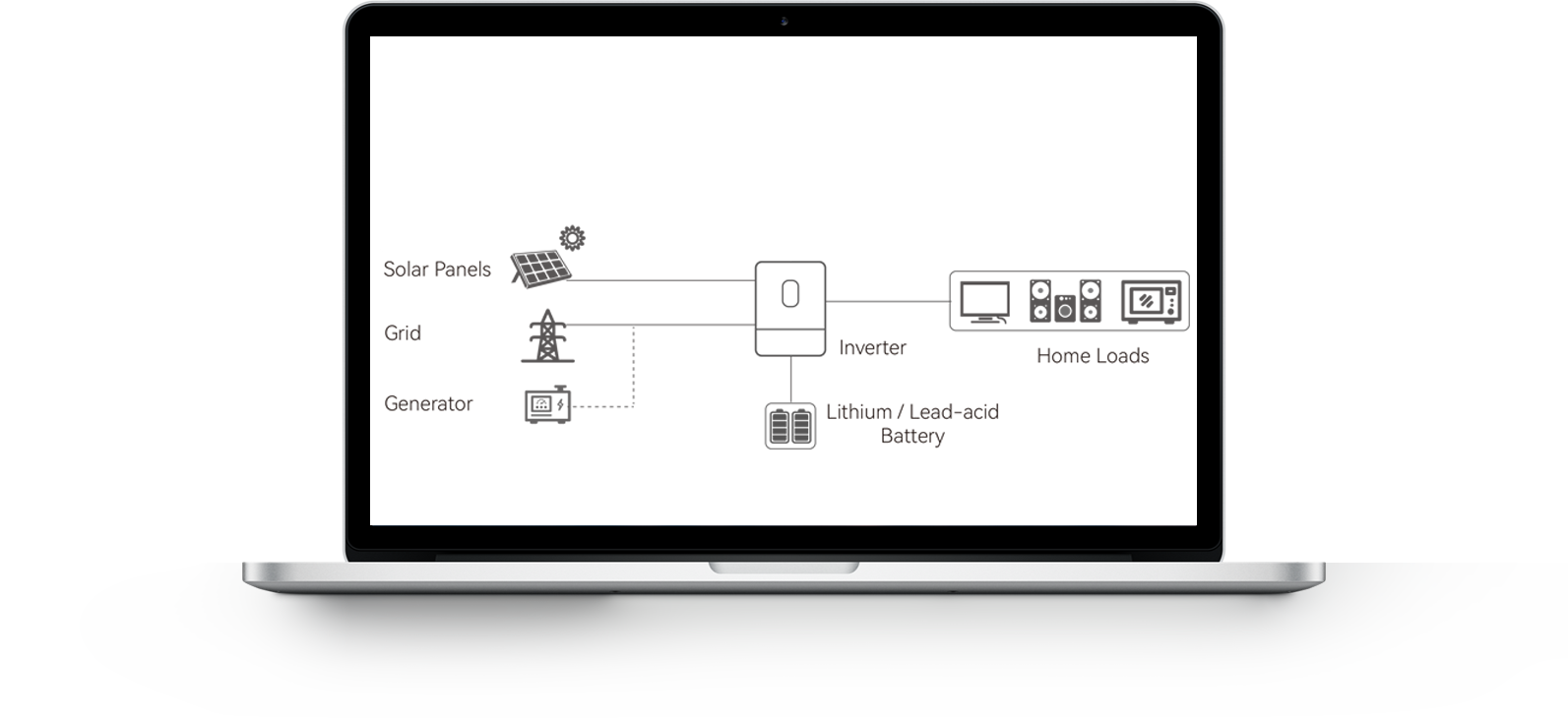

System Topology
Built-in 120A Solar Charger
MPPT Range 20-125V
Pure Sine Wave
LCD Display
Support Lithium/ Lead-acid Battery
Lithium Battery Activation
Power Factor 1.0
Detachable Dust Cover
System Architecture
Specifications

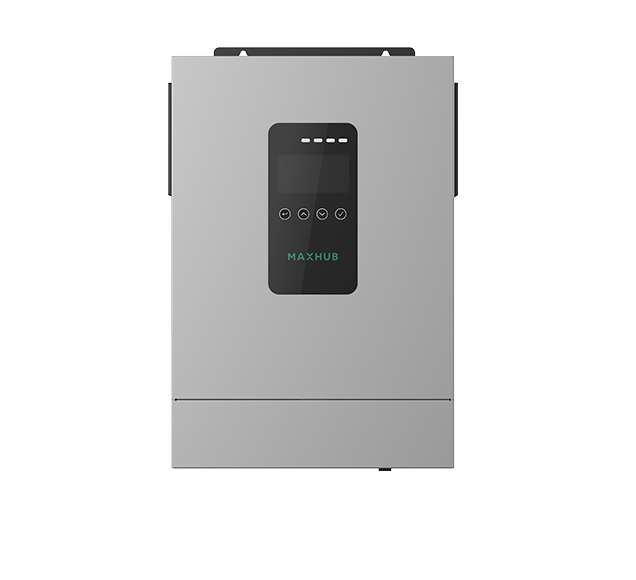

  • PV1000-12
    AC Input & Output
    208 / 220 / 230 / 240Vac; 50/60Hz; L + N + PE
    Input Voltage Range (V)
    90~280±3 (normal mode); 170~280±3 (UPS mode)
    Nominal Capacity (kW)
    1.2
    Power Factor (PF)
    1
    Switch Time (ms)
    10 (normal mode) / 10 (UPS mode)
    Wave Form
    Pure Sine Wave
    Solar Charger Type
    MPPT
    Max PV input current / power
    14A / 1000W
    MPPT Range@Operating Voltage (V)
    20~100
    Max PV Open Circuit Voltage (V)
    125
    Max. Charge Current (PV + AC) (A)
    100
    Battery Voltage (V)
    12
    Battery Type
    Lithium and Lead-acid
    Ingress Protection
    IP21
    Operating Temperature
    -10℃~ 50℃
