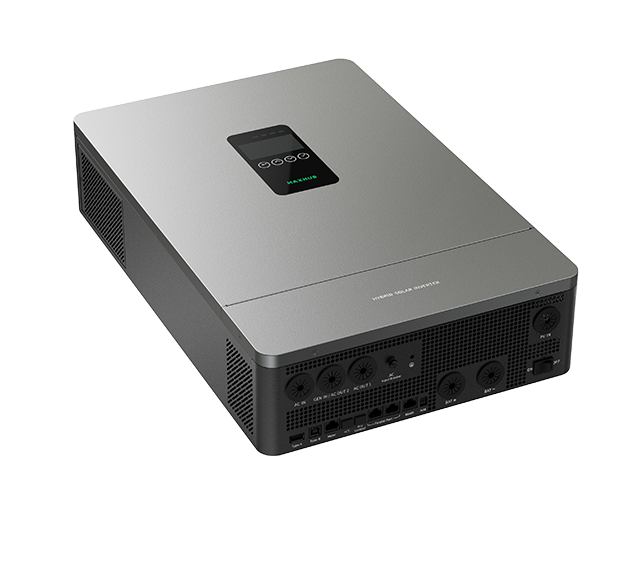

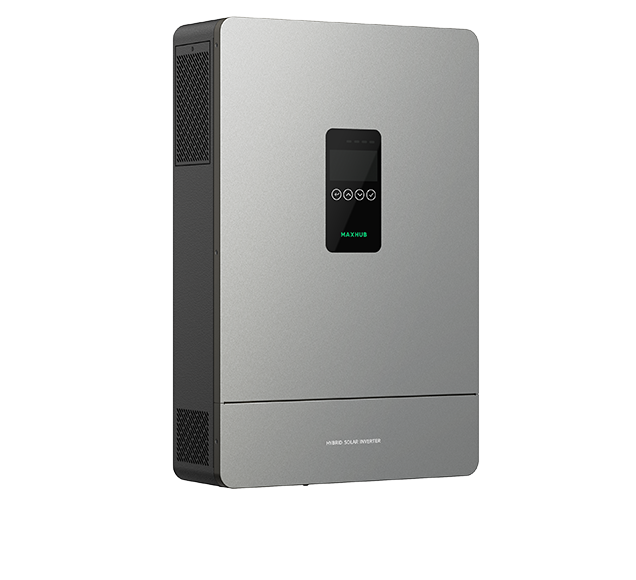

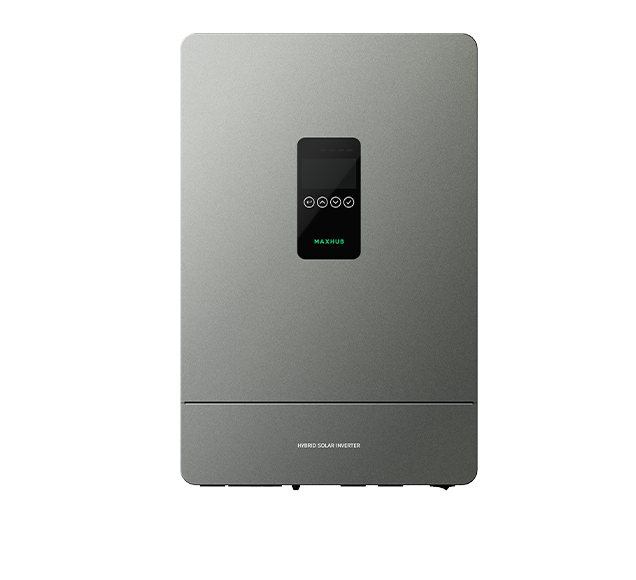

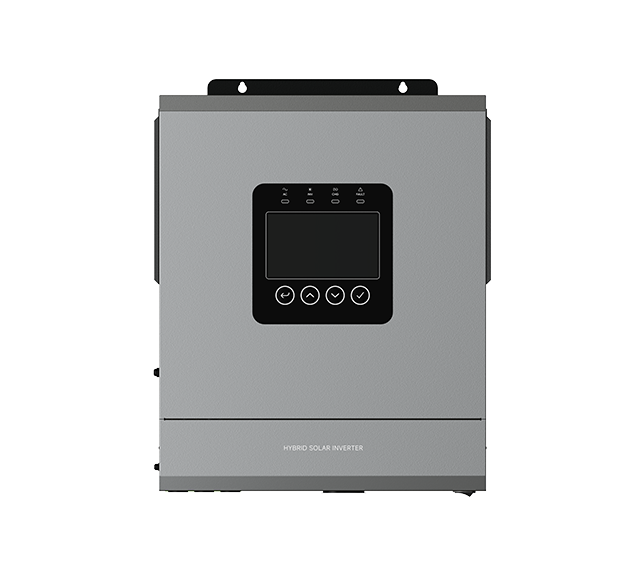

6500W
Single Phase Off-grid Solar Inverter
Powerful dual-input/output home green energy solution integrated with solar and energy storage
Complete lithium battery management
Smart power management
Specification Download Product Inquiry
  • PV9000-48
  • PV9000-48
  • PV9000-48
  • PV9000-48
  • PV9000-48
Product Features
Built-in 120A Solar Charger
Wide MPPT Range 60-500V
28A MAX PV input

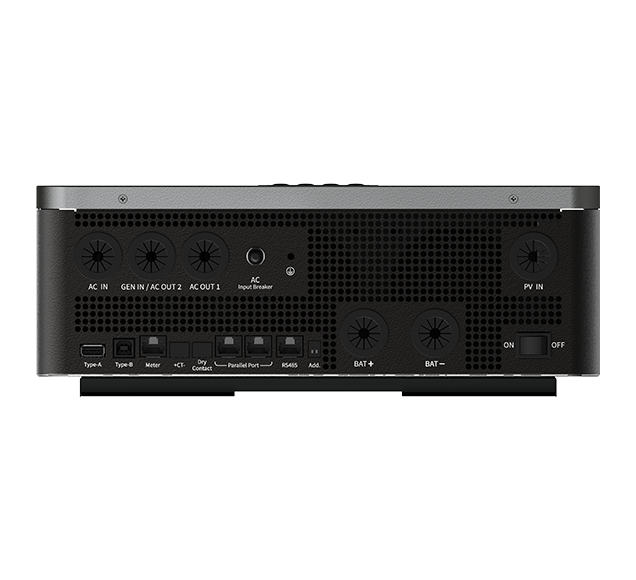

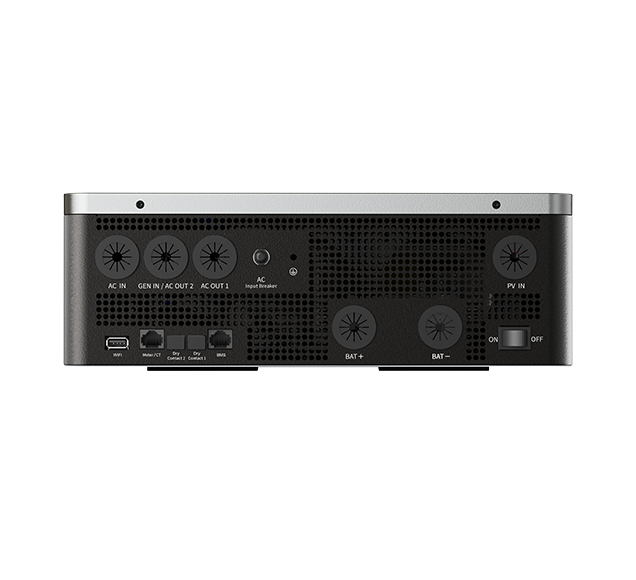

Dual AC In& Dual AC Out*
9 Inverters in Parallel
Support Lithium/ Lead-acid Battery
Lithium Battery Activation
Noise Control Algorithm
WiFi Monitoring
Feed-in to Grid

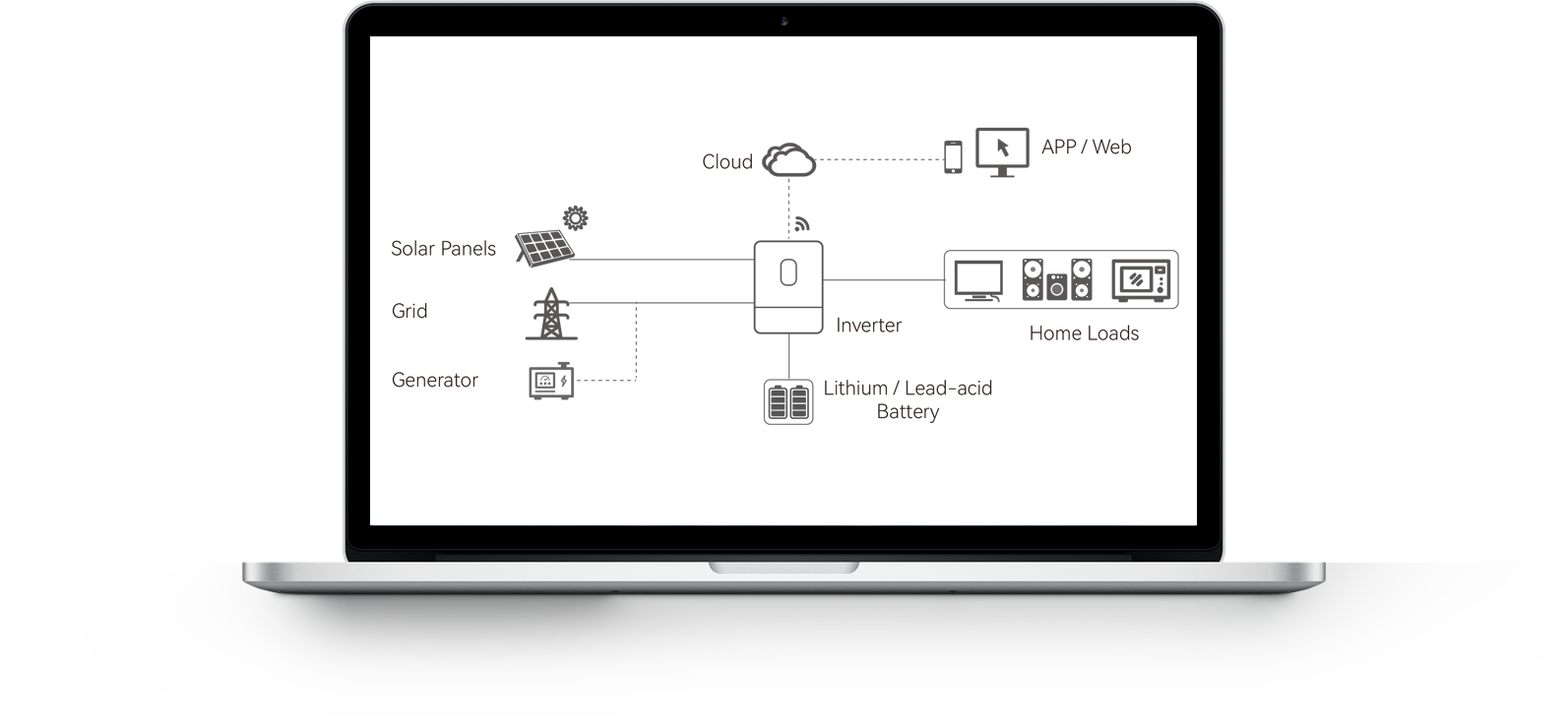

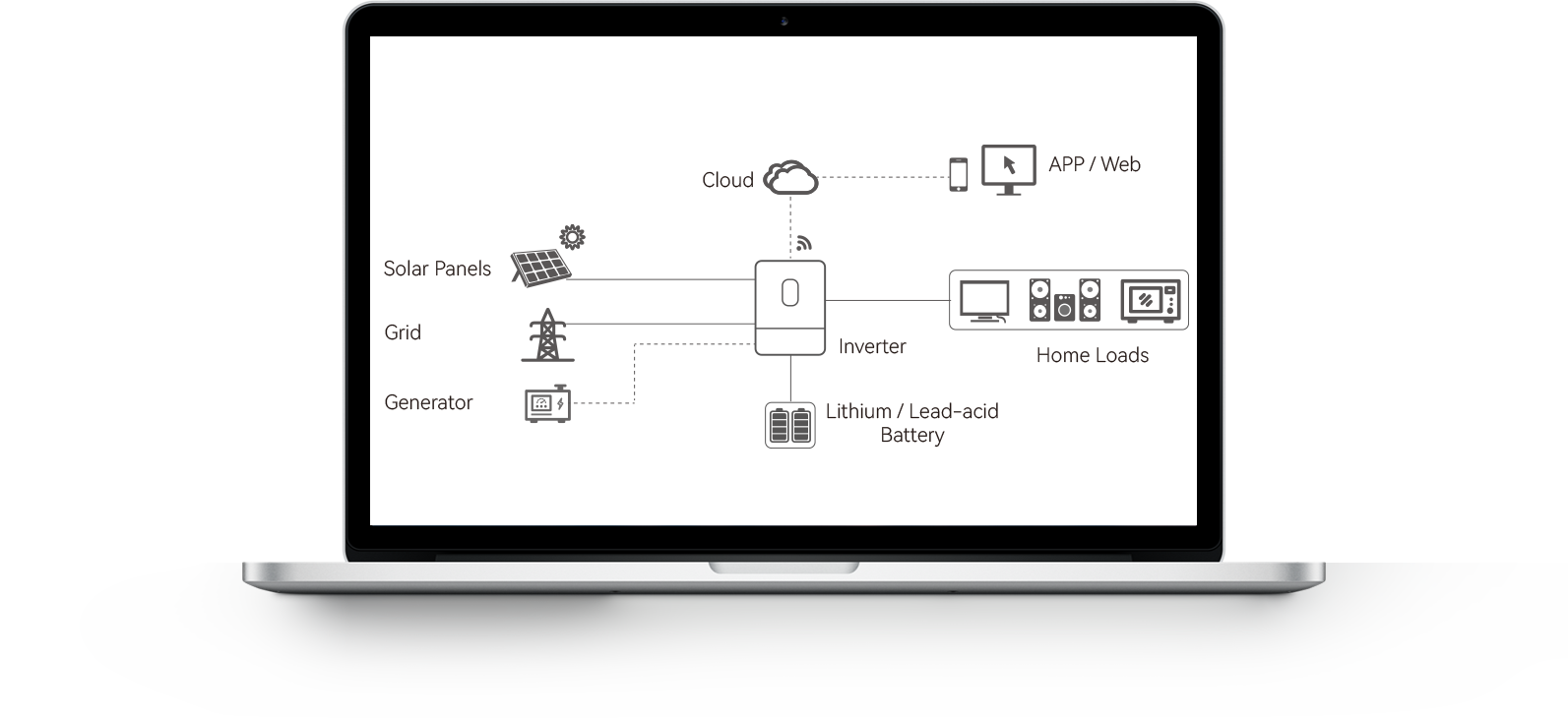

System Architecture
Specifications
  • PV9000-48
    AC Input & Output
    208 / 220 / 230 / 240Vac; 50/60Hz; L + N + PE
    Input Voltage Range (V)
    90~280±3 (normal mode); 170~280±3 (UPS mode)
    Nominal Capacity (kW)
    6.5
    Power Factor (PF)
    1
    Switch Time (ms)
    10 (normal mode) / 10 (UPS mode)
    Wave Form
    Pure Sine Wave
    Solar Charger Type
    MPPT
    Max PV input current / power
    28A / 7000W
    MPPT Range@Operating Voltage (V)
    60~450
    Max PV Open Circuit Voltage (V)
    500
    Max. Charge Current (PV + AC) (A)
    120
    Battery Voltage (V)
    48
    Battery Type
    Lithium and Lead-acid
    Ingress Protection
    IP21
    Operating Temperature
    -10℃~ 50℃
    Parallel Quantity
    9
