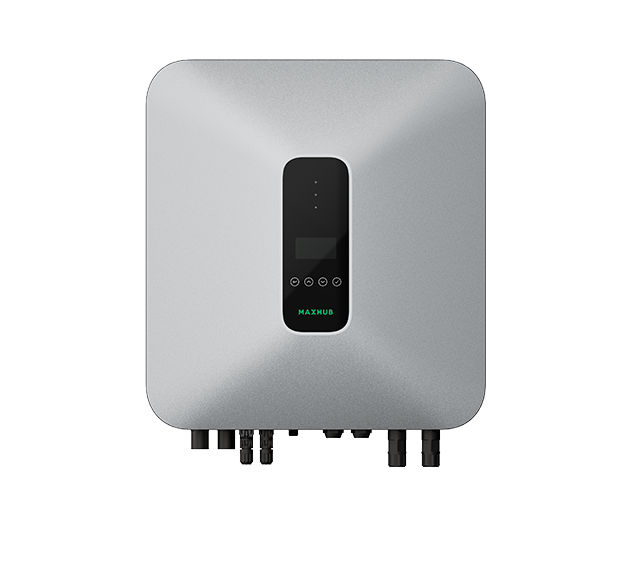

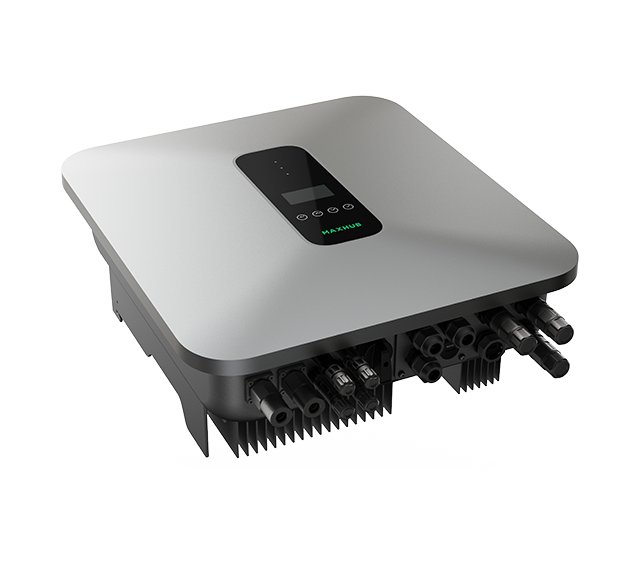

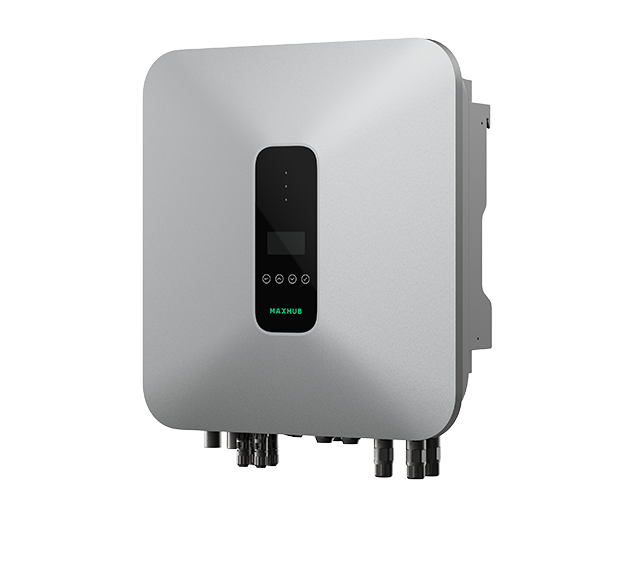

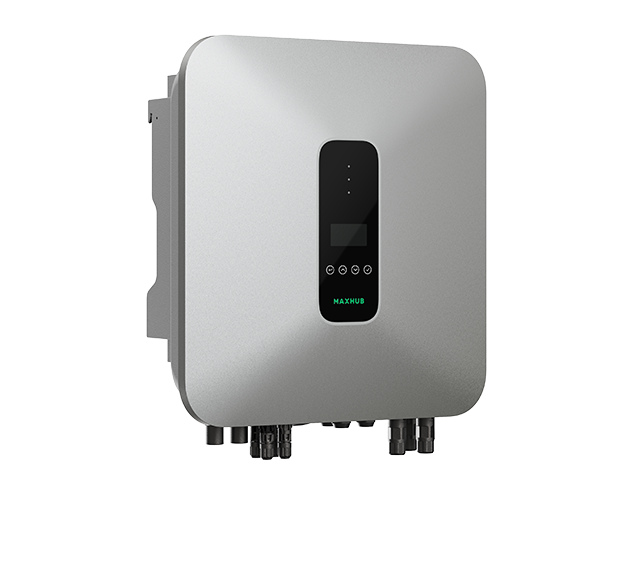

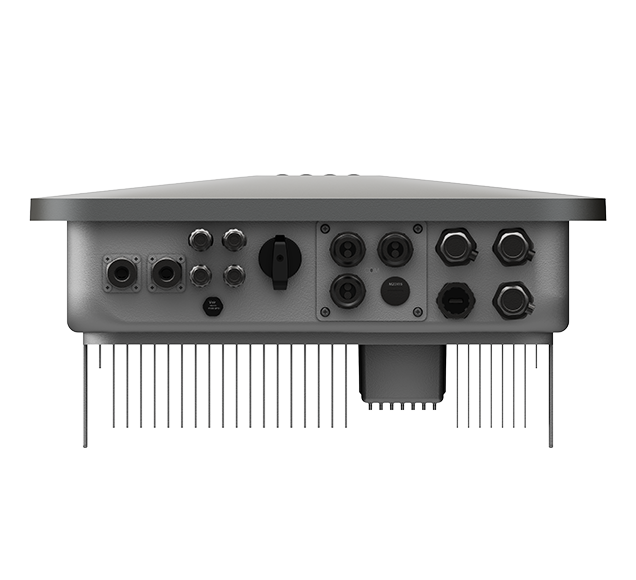

HN3~6KS

3000 ~ 6000W
Single Phase Hybrid Solar Inverter
Newly launched home green energy solution integrated with solar and energy storage
Simple and exquisite appearance, safe and reliable inside
Excellent electromagnetic compatibility design
  • HN3~6KS
  • HN3~6KS
  • HN3~6KS
  • HN3~6KS
  • HN3~6KS
Product Features

Wide MPPT Range

2 MPP trackers

Type lll SPD both on DC&AC side

19A MPPT input current per string

lP66 protection level

Integrated and concise design

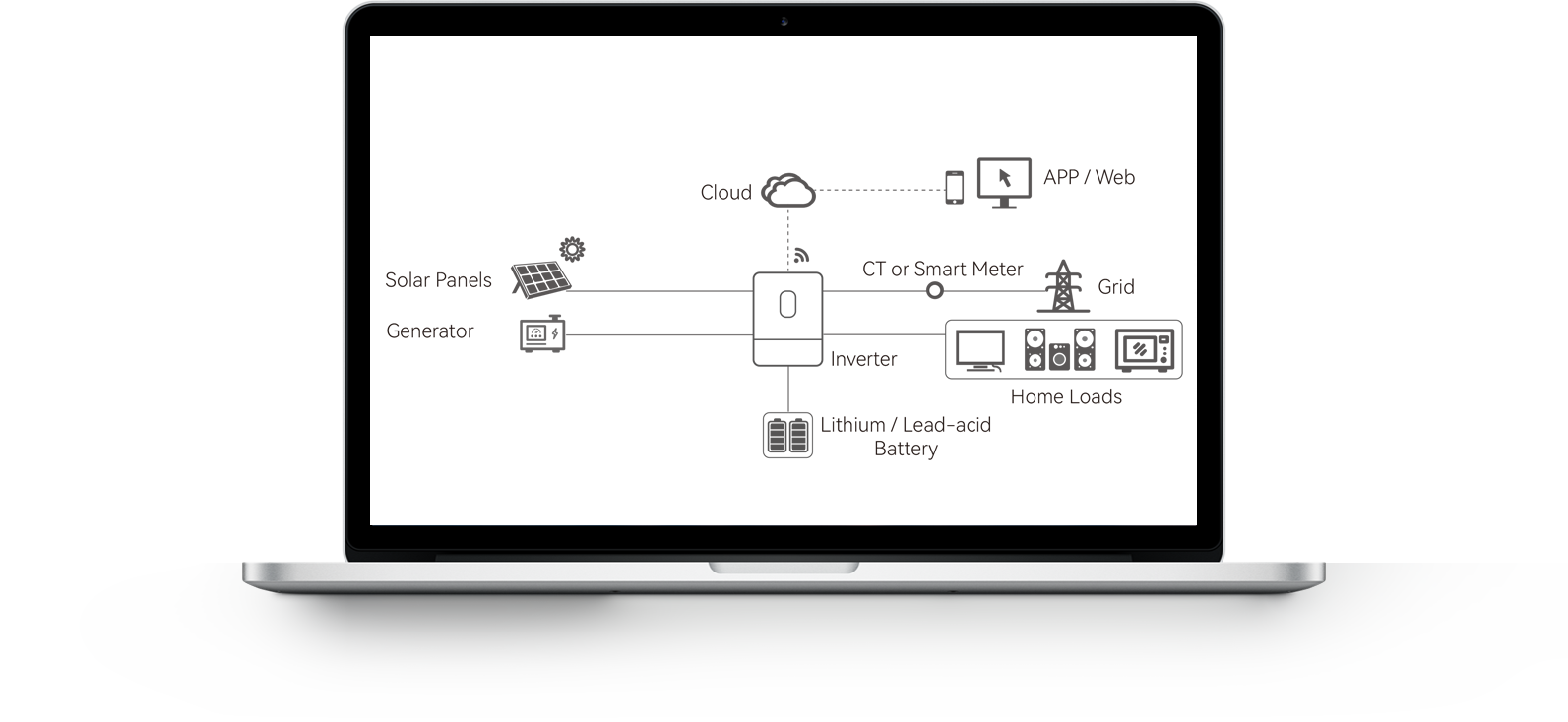

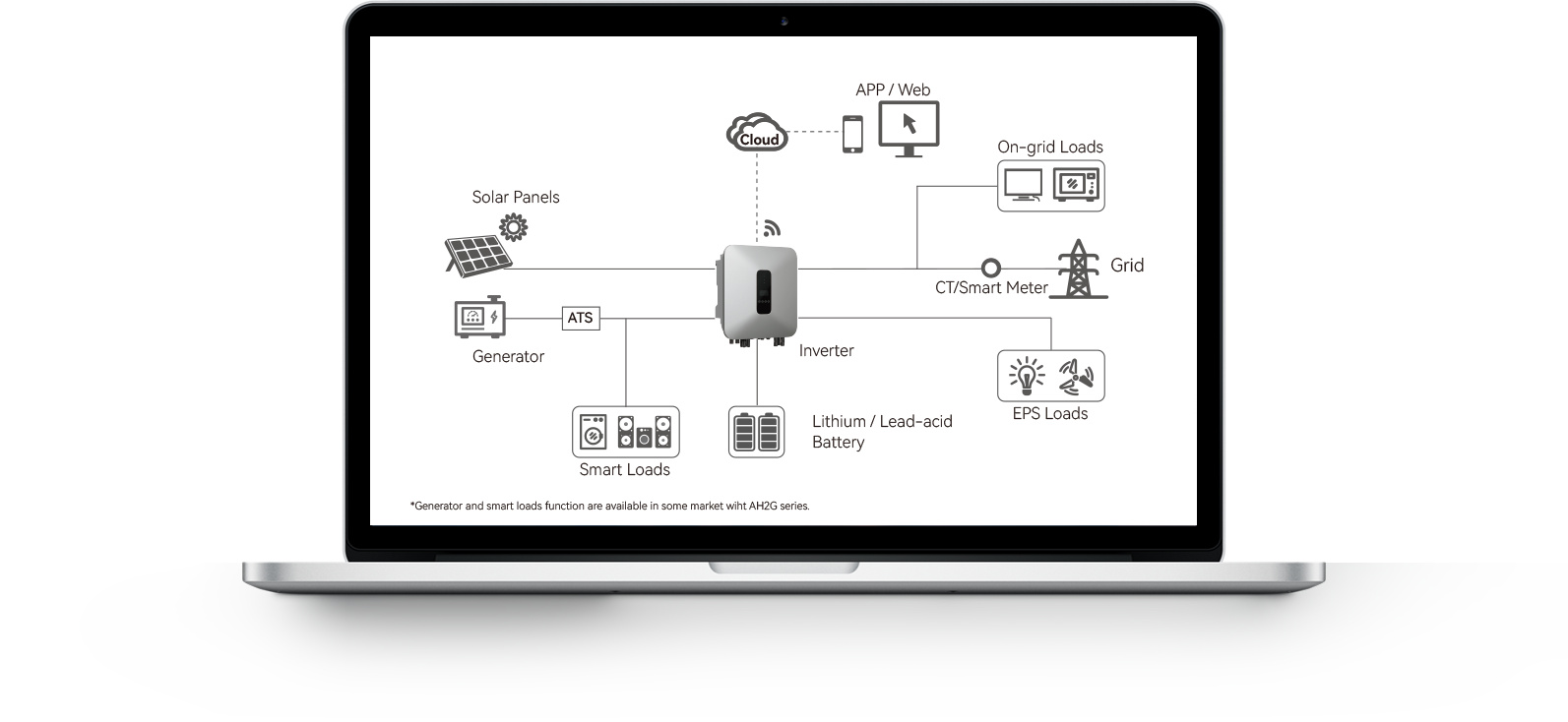

System Architecture
Specifications
MODEL
HN3KS-AH2
HN3K6S-AH2
HN4KS-AH2
HN5KS-AH2
HN6KS-AH2
Max. PV Input Power(kW)
4.5
5.5
6
7.5
9
Max. PV Open Circuit Voltage(V)
550
550
550
550
550
MPPT Range@Operating Voltage(V)
80~520
80~520
80~520
80~520
80~520
Max. Input Current per MPPT(A)
19/19
19/19
19/19
19/19
19/19
Max. Short-circuit Current(A)
25/25
25/25
25/25
25/25
25/25
MPPT Tracker/Strings
2 / 1
2 / 1
2 / 1
2 / 1
2 / 1
Nominal Output Power(kW)
3
3.68
4
5
6
Nominal Voltage/Frequency
230V(176V~280V), 50/60Hz, L+N+PE
230V(176V~280V), 50/60Hz, L+N+PE
230V(176V~280V), 50/60Hz, L+N+PE
230V(176V~280V), 50/60Hz, L+N+PE
230V(176V~280V), 50/60Hz, L+N+PE
Adjustable Power Factor
0.8leading~0.8lagging
0.8leading~0.8lagging
0.8leading~0.8lagging
0.8leading~0.8lagging
0.8leading~0.8lagging
BatteryVoltage Range(V)
40~60
40~60
40~60
40~60
40~60
Max. Battery Charging/Discharging Current(A)
80/80
80/80
80/80
80/80
80/80
Battery Type
Lithium and Lead Acid Battery
Lithium and Lead Acid Battery
Lithium and Lead Acid Battery
Lithium and Lead Acid Battery
Lithium and Lead Acid Battery
Ingress Protection
IP66
IP66
IP66
IP66
IP66
Operating Temperature Range
-25~60℃
-25~60℃
-25~60℃
-25~60℃
-25~60℃

Related Applications
