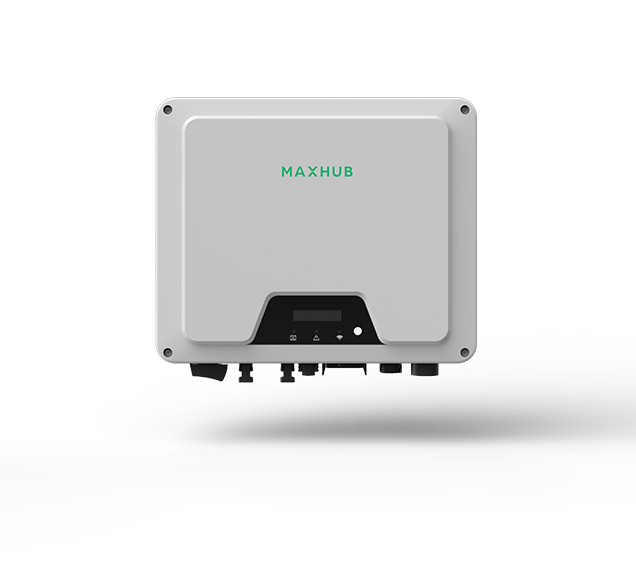

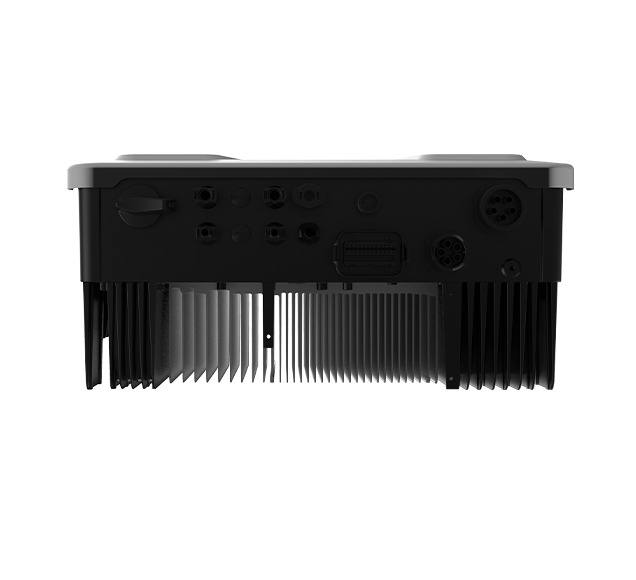

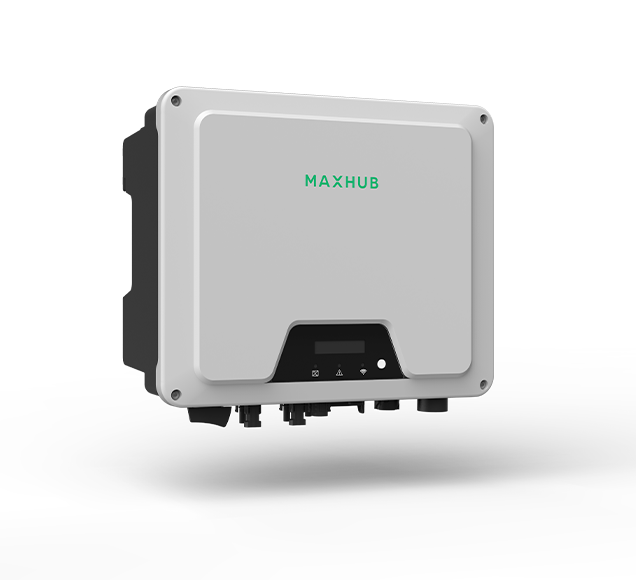

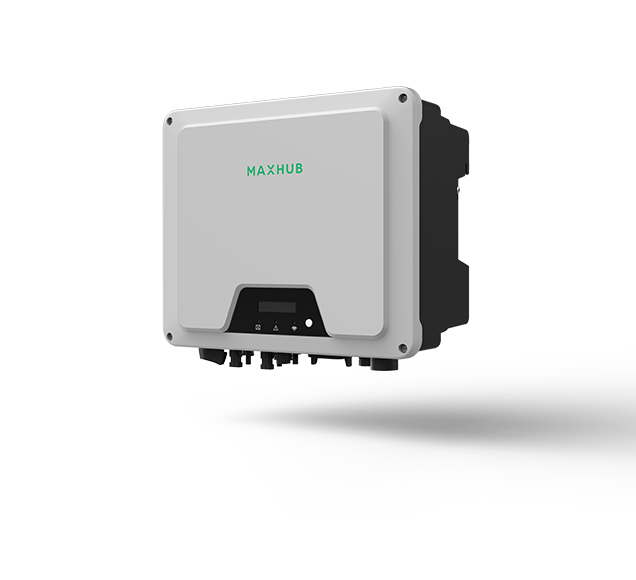

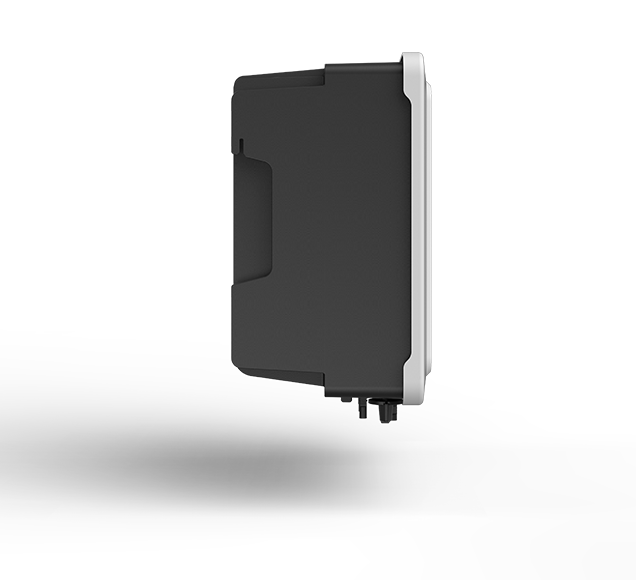

PHN5~15KT

5000 ~ 15000W
Three Phase Hybrid Solar Inverter
High efficient home green energy solution integrated with solar and energy storage
Simple and exquisite appearance, safe and reliable inside
Excellent electromagnetic compatibility design
  • PHN5~15KT
  • PHN5~15KT
  • PHN5~15KT
  • PHN5~15KT
  • PHN5~15KT
Product Features

98.5% Peak Efficiency

50% Max. DC Overload

Aluminum Alloy Die Casting

MES+FCT+CRM Infrastructure

Easy to Install and Service

Energy Management

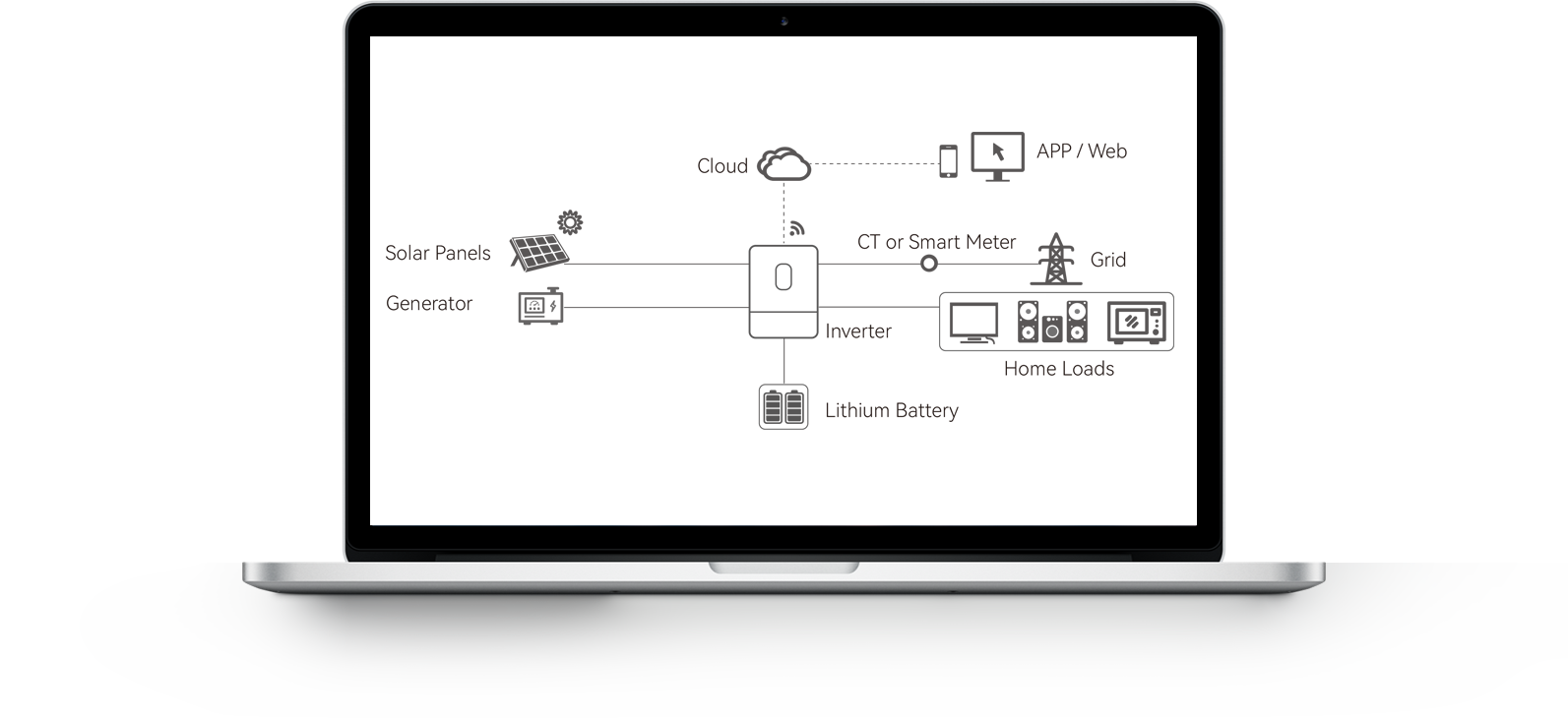

System Architecture
Specifications
MODEL
PHN5KT-BH2
PHN6KT-BH2
PHN8KT- BH2
PHN10KT- BH2
PHN12KT- BH2
PHN15KT- BH2
INPUT/DC
Max. PV Power(kW)
7500
9000
12000
15000
18000
22500
Max. Input Voltage(V)
1000
1000
1000
1000
1000
1000
MPP Voltage Range(V)
150 - 850
150 - 850
150 - 850
150 - 850
150 - 850
150 - 850
Max. Input Current(A)
15 / 15
15 / 15
15 / 15
15 / 15
15 / 15
15 / 15
Max. DC Short Circuit Current(A)
20 / 20
20 / 20
20 / 20
20 / 20
20 / 20
20 / 20
No. of Independent MPPT Inputs
2
2
2
2
2
2
No. of PV Strings per MPPT
1 / 1
1 / 1
1 / 1
1 / 1
1 / 1
2 / 1
Nominal Output Power(kW)
5000
6000
8000
10000
12000
15000
Nominal Voltage/Frequency
380 / 400; 3L / N / PE; 50 / 60
380 / 400; 3L / N / PE; 50 / 60
380 / 400; 3L / N / PE; 50 / 60
380 / 400; 3L / N / PE; 50 / 60
380 / 400; 3L / N / PE; 50 / 60
380 / 400; 3L / N / PE; 50 / 60
Power Factor
0.8 leading ~ 0.8 lagging
0.8 leading ~ 0.8 lagging
0.8 leading ~ 0.8 lagging
0.8 leading ~ 0.8 lagging
0.8 leading ~ 0.8 lagging
0.8 leading ~ 0.8 lagging
Battery Type
Lithium
Lithium
Lithium
Lithium
Lithium
Lithium
Battery Voltage Range(V)
160 - 800
160 - 800
160 - 800
160 - 800
160 - 800
160 - 800
Max. Charging / Discharging Current(A)
25 / 25
25 / 25
25 / 25
25 / 25
25 / 25
25 / 25
Ingress Protection
IP66
IP66
IP66
IP66
IP66
IP66
Operating Temperature Range
-25~60℃
-25~60℃
-25~60℃
-25~60℃
-25~60℃
-25~60℃
