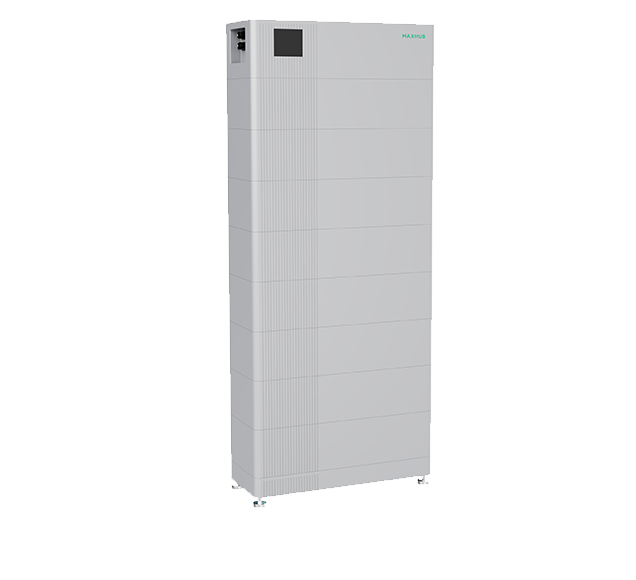

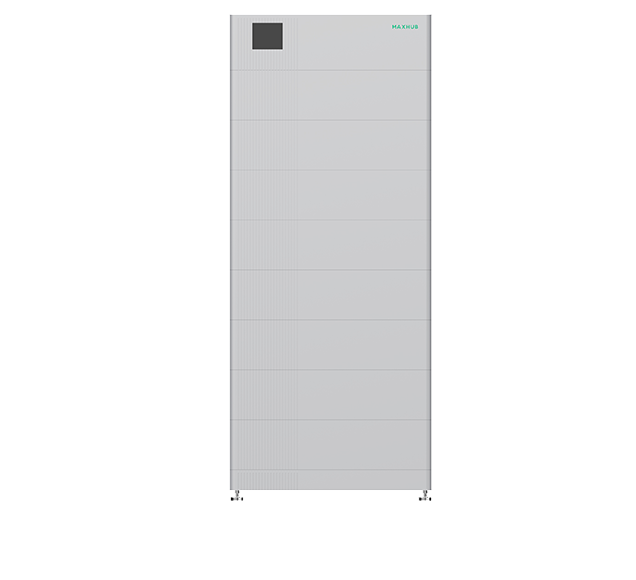

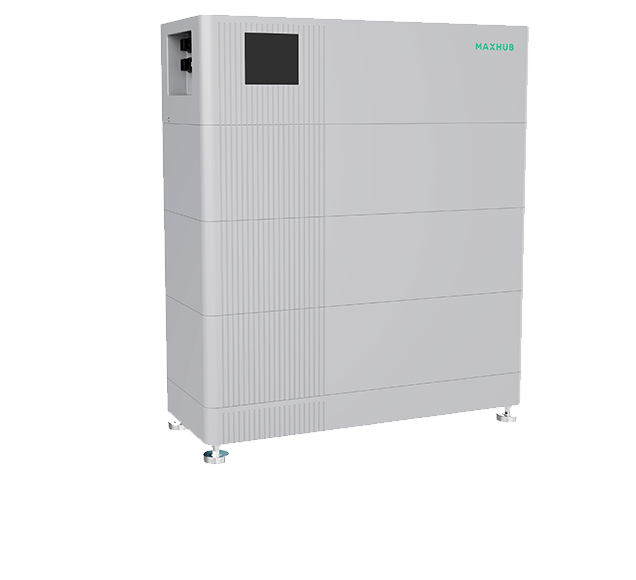

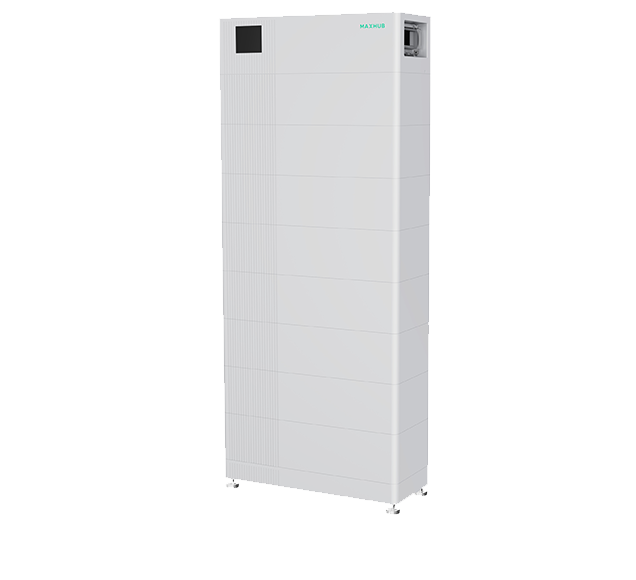

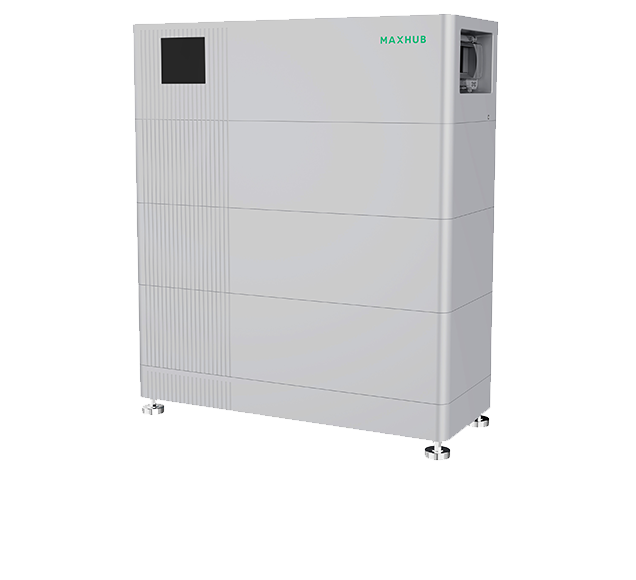

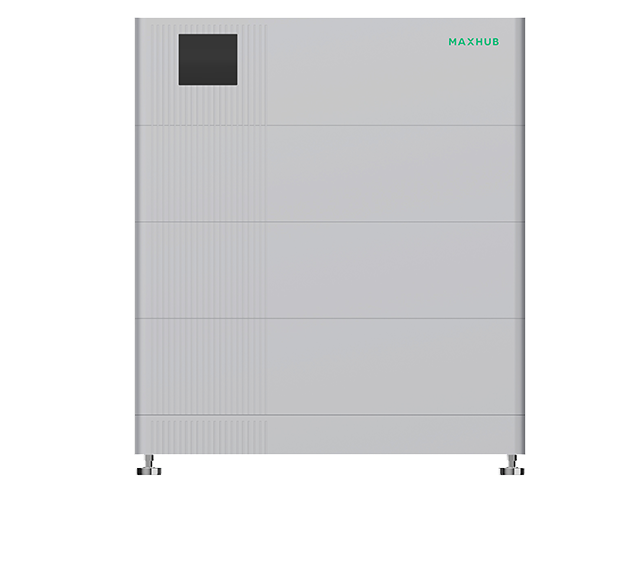

BBM9K6~25K6H

9.6∼25.6kWh
Modular HV LFP Battery
Modular and stacked
Comprehensive protection design
Excellent battery management
  • BBM9K6~25K6H
  • BBM9K6~25K6H
  • BBM9K6~25K6H
  • BBM9K6~25K6H
  • BBM9K6~25K6H
  • BBM9K6~25K6H
Product Features

Automatic Inverter Configura-tion(set-up free)

Flexible capacity config-uration(5-60kwh),mixed use of old and new

Compatible with market-leading hybrid inverter

Specifications
MODEL
BBM9K6H
BBM12K8H
BBM16KH
BBM19K2H
BBM22K4H
BBM25K6H
System Energy
9.9 kWh
13.2 kWh
16.5 kWh
19.8 kWh
23.1 kWh
26.4 kWh
Usable Energy
9.6 kWh
12.8 kWh
16.0 kWh
19.2 kWh
22.4 kWh
25.6 kWh
Max Output Current
30 A
Peak Output Current
50 A (5s)
Nominal Voltage
192 V
256 V
320 V
384 V
448 V
512 V
Operating Voltage Range
162~219 V
216~292 V
270~365 V
324~438 V
378~511 V
432~584 V
Dimensions (H*W*D, mm)
800* 650* 260
975* 650* 260
1150* 650* 260
1325* 650* 260
1500* 650* 260
1675* 650* 260
Weight
129.5 kg
166 kg
202.5 kg
239 kg
275.5 kg
312 kg
Operation Temperature
-10~55 ºC
Protection Rating
IP65

Related Applications
